Product Specifications
| power(w) | 15 HP | emission standard | Euro 1 |
|---|---|---|---|
| cylinder | Single cylinder | stroke | 4 Stroke |
| displacement | Other | cold style | Air-Cooled |
| start | Electric Start | warranty | 1 Year or 500 hours |
| machinery test report | Not Available | video outgoing-inspection | Provided |
| core components | Engine | key selling points | Competitive Price |
| place of origin | Jiangsu, China | weight | 135 |
| brand name | SealinePoewer | dimension(l*w*h) | 700*480*600 |
| rated power/speed | 3600 | Color | Customers’ Requirement |
| Power | SE1100F | Starting system | Hand pulled start or electric start |
| Fuel type | 0# or -10# light diesel oil | Options | Customer’s Logo |
| Certification | CE, ISO9001 | Product Name | Open Diesel Generator |
| Rated Power | 7.5KVA | Engine Model | SE1100F |
| Selling Units | Single item |
|
Open Type Welder Diesel Generator |
||
|
Generator |
Model |
SDG1100EW |
|
Rated Output(KVA) |
7.5/8.0 |
|
|
Max Output(KVA) |
7.0/7.5 |
|
|
Rated Frequency(Hz) |
50/60 |
|
|
Rated AC Voltage(V) |
110/220, 120/240, 220/380, 240/400 |
|
|
DC Outpu(V) |
12V/8.3A |
|
|
Power Factor(cosθ) |
1/0.8(Three Phase) |
|
|
Phase |
Single or Three Phase |
|
|
Starting System |
Electric Starter |
|
|
Noise Level(Dba/7m) |
80-85 |
|
|
Fuel Tank Capacity(L) |
12.5 |
|
|
Continuous Running Time(Hr) |
8.5/7.8 |
|
|
Engine |
Model |
SE1100FE |
|
Power(HP) |
15 |
|
|
Engine Type |
Air-Cooled; Single-Cylinder; 4-Stroke; OHV |
|
|
Fuel Type |
0#(Summer), -10#(Winter)Diesel Oil |
|
|
Displacement(cc) |
418 |
|
|
Min Fuel Consumption(g/kw/h) |
280 |
|
|
Lube Oil Capacity(L) |
1.65 |
|
|
WELDER |
Welding no-load voltage(V) |
55-65 |
|
Working voltage(V) |
26-30 |
|
|
Rated current(A) |
160 |
|
|
Range of current(A) |
20-190 |
|
|
Welding efficiency |
0.6 |
|
|
Dimension & Packing |
Dimension(L*W*H)(mm) |
910*530*740 |
|
Net Weight(kg) |
135 |
|
|
Packing |
In Strong Corrugated Board Carton |
|
|
20FT Loading Quantity |
135 |
|
|
40HQ Loading Quantity |
270 |
|
|
Payment |
Payment Terms |
T/T or L/C |
|
Minimum Order Quantity |
5 PCS |
|
|
Delivery Lead Time |
Within 15days after received the deposite |
|
|
Warranty |
One Year or 500 Working Hours |
|

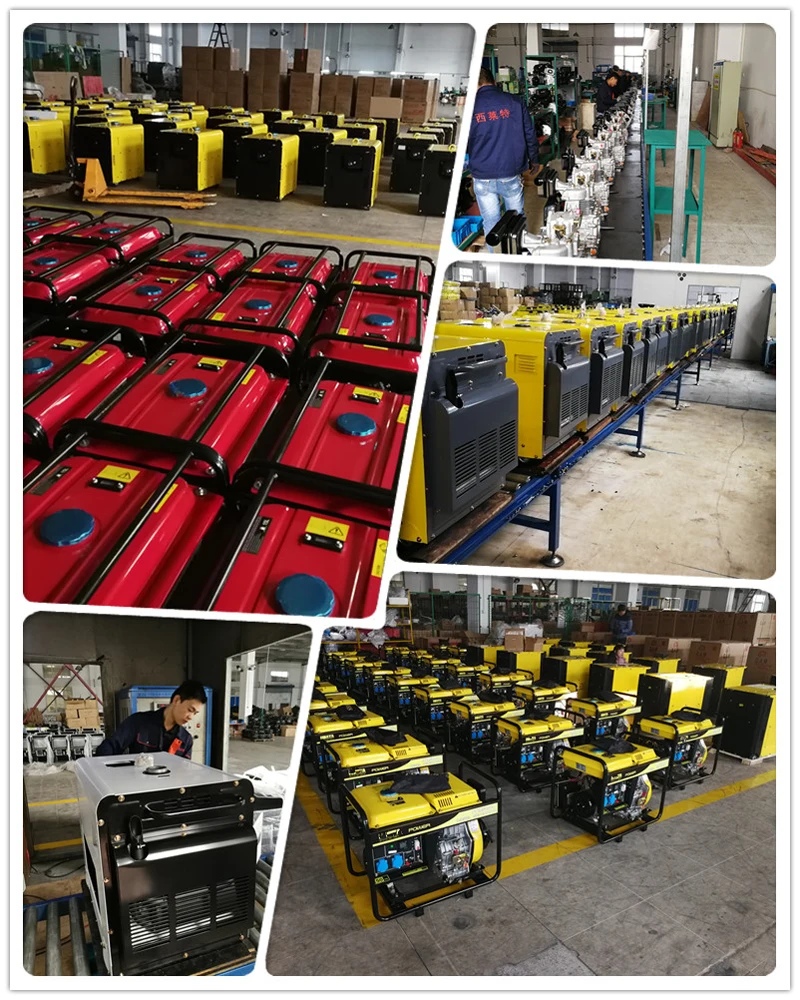

1.Modern workshops have advanced production lines with whole set of inspection, testing equipment. 2.Skilled assemblers is vital to promise high quality production.
3.Flow card to record each details carefully.
4.Test engine at least 45mins to adjust the best state.

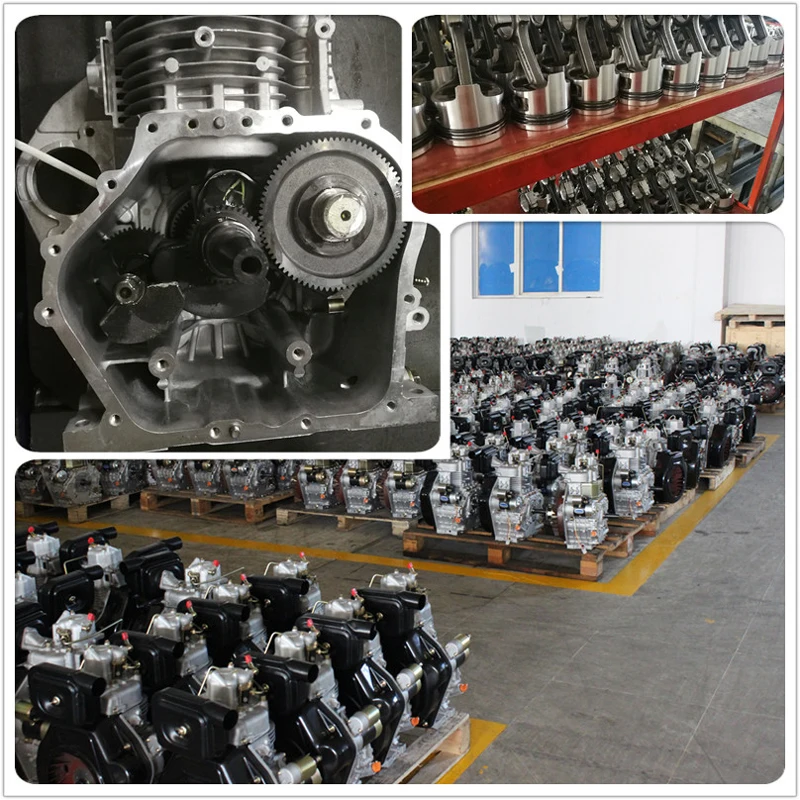

1. We are factory of manufacturing diesel and gasoline engine,diesel generator from 2-1000KW,water
pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power
trowel, agriculture machinery and so on.

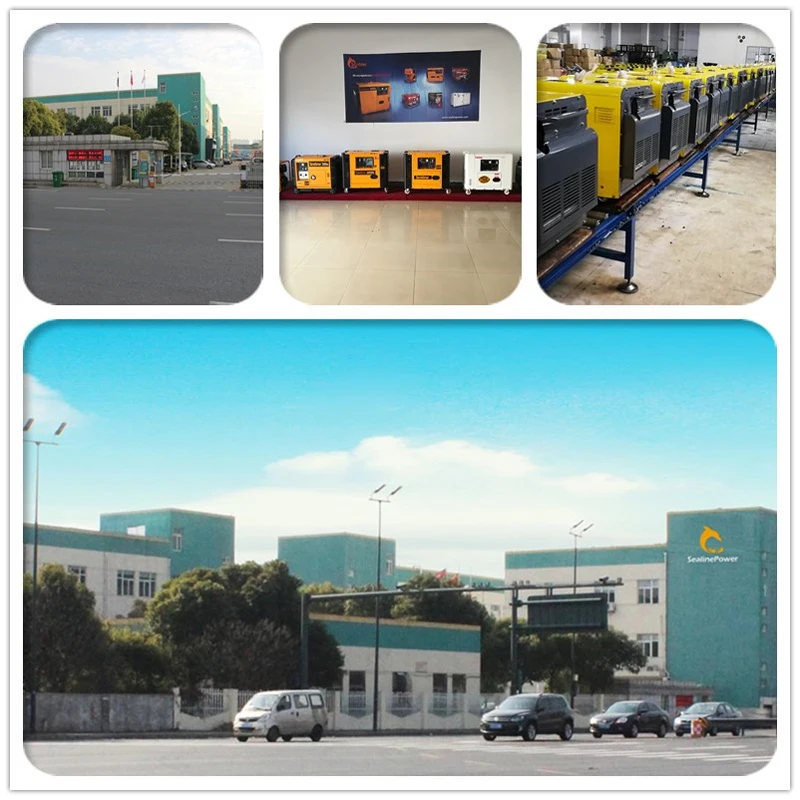

2. Modern workshop and production line, we warmly welcome your visiting.
3. We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
4. ISO,CE,GS,Rohs certificates.We have been making good progress.
ISO9001-2008, CE
