Product Specifications
| power(w) | 8kw | emission standard | Euro 1 |
|---|---|---|---|
| cylinder | Single cylinder | stroke | 4 Stroke |
| displacement | 660cc | cold style | Air-Cooled |
| start | Electric Start | warranty | 1 Year |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Motor, Engine | key selling points | High Productivity |
| place of origin | Jiangsu, China | weight | 190 |
| brand name | Sealinepower | dimension(l*w*h) | 950*560*760 |
| rated power/speed | 3000/3600 | Product name | Silent Diesel Generator |
| Warranty | 1 Year or 500 Working Hours | Engine | Chinese Engine |
| Package | Carton Packaged | ||
| Phase | 1 Phase/3 Phase | ||
| Certification | CE, ISO9001 | Cooling System | Air Cooling |
| Condition | 100% Brand-new | Brand | Sealinepower |
| Selling Units | Single item | ||
|
Silent Type Diesel Generator |
||
|
Generator |
Model |
SDG1100S |
|
Rated Output(KVA) |
8.0/8.5 |
|
|
Max Output(KVA) |
7.5/8.0 |
|
|
Rated Frequency(Hz) |
50/60 |
|
|
Rated AC Voltage(V) |
110/220, 120/240, 220/380, 240/400 |
|
|
DC Outpu(V) |
12V/8.3A |
|
|
Power Factor(cosθ) |
1/0.8(Three Phase) |
|
|
Phase |
Single or Three Phase |
|
|
Starting System |
Electric Starter |
|
|
Noise Level(Dba/7m) |
80-85 |
|
|
Fuel Tank Capacity(L) |
12.5 |
|
|
Continuous Running Time(Hr) |
8.5/7.8 |
|
|
Engine |
Model |
SE1100FE |
|
Power(HP) |
13 |
|
|
Engine Type |
Air-Cooled; Single-Cylinder; 4-Stroke; OHV |
|
|
Fuel Type |
0#(Summer), -10#(Winter)Diesel Oil |
|
|
Displacement(cc) |
418 |
|
|
Min Fuel Consumption(g/kw/h) |
280 |
|
|
Lube Oil Capacity(L) |
1.65 |
|
|
Dimension & Packing |
Dimension(L*W*H)(mm) |
950*560*760 |
|
Net Weight(kg) |
190 |
|
|
Packing |
In Strong Corrugated Board Carton |
|
|
20FT Loading Quantity |
72 |
|
|
40HQ Loading Quantity |
144 |
|
|
Payment |
Payment Terms |
T/T or L/C |
|
Minimum Order Quantity |
5 PCS |
|
|
Delivery Lead Time |
Within 15days after received the deposite |
|
|
Warranty |
One Year or 500 Working Hours |
|

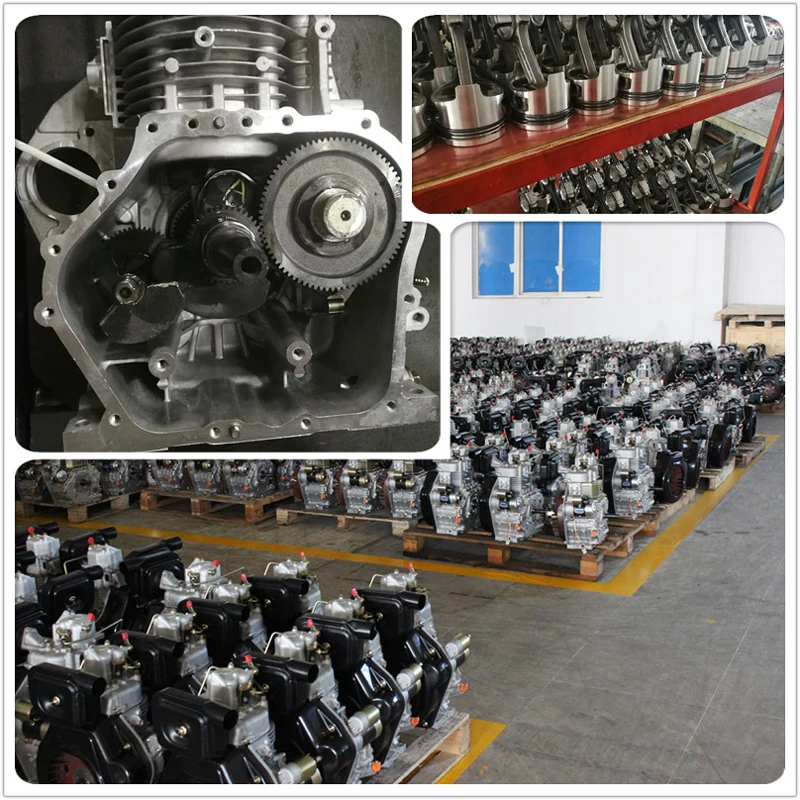

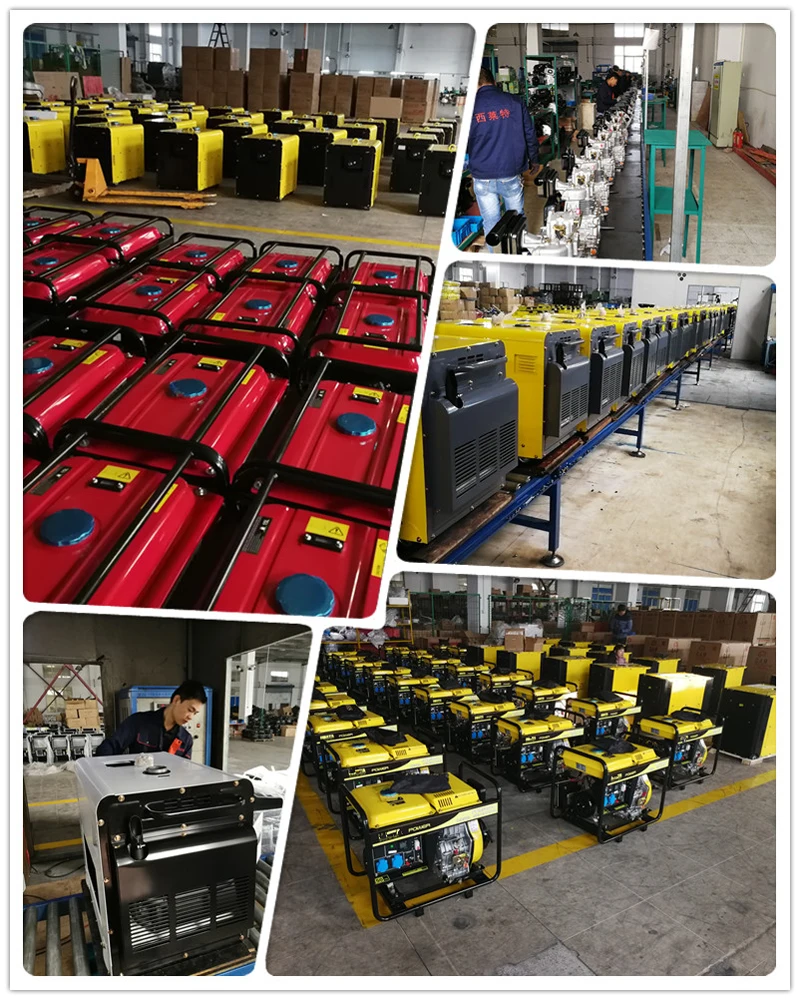

1.Modern workshops have advanced production lines with whole set of inspection, testing equipment. 2.Skilled assemblers is vital to promise high quality production.
3.Flow card to record each details carefully.
4.Test engine at least 45mins to adjust the best state.
1. We are factory of manufacturing diesel and gasoline engine,diesel generator from 2-1000KW,water
pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power
trowel, agriculture machinery and so on.

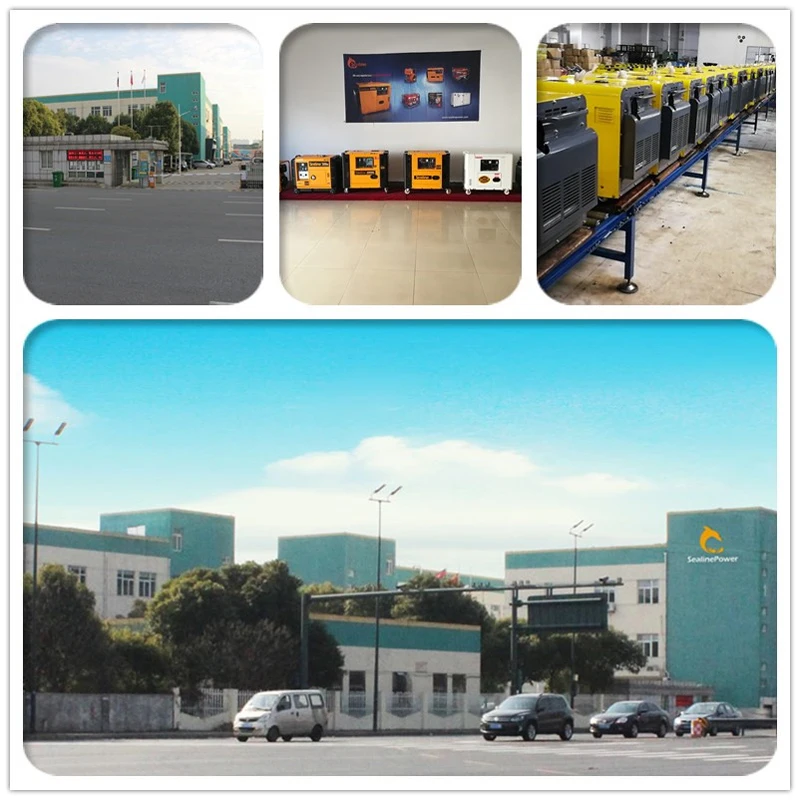

2. Modern workshop and production line, we warmly welcome your visiting.
3. We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
4. ISO,CE,GS,Rohs certificates.We have been making good progress.
ISO9001-2008, CE
