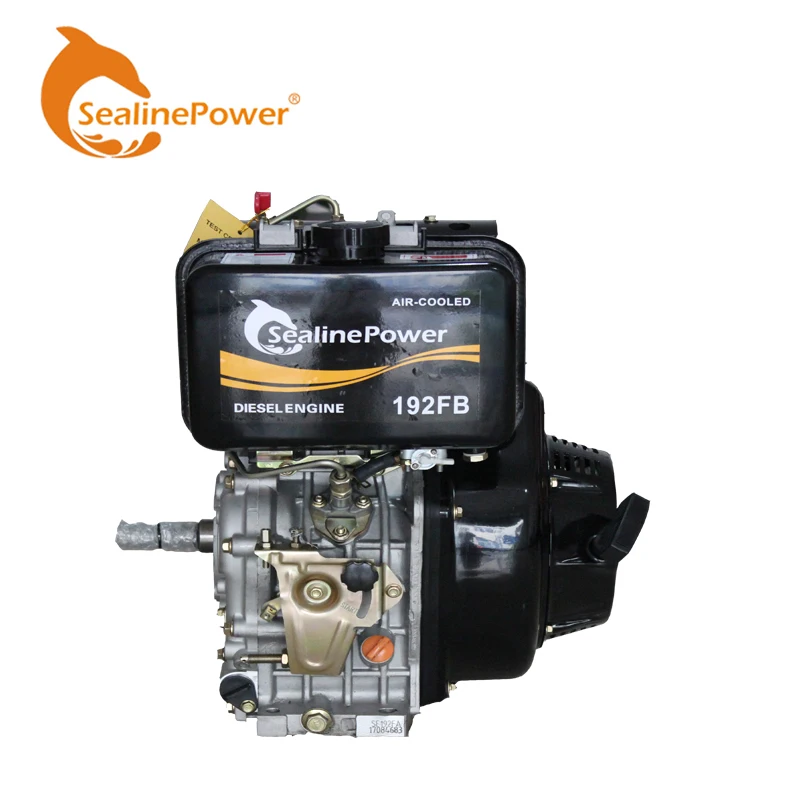

Product Specifications
| power(w) | 16HP | emission standard | Euro 4 |
|---|---|---|---|
| cylinder | Single cylinder | stroke | 4 Stroke |
| displacement | 498CC | cold style | Air-Cooled |
| start | Recoil or Electric Start | warranty | 1 Year or 500Hours(Whichever reach first) |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Engine | key selling points | Other |
| place of origin | Jiangsu, China | weight | 58KG |
| brand name | Sealine Power or OEM | dimension(l*w*h) | 510x470x560mm |
| rated power/speed | 16HP/3600rpm | Rated Power | 16HP |
| BORE*STROKE | 92*75mm | Output Shaft Type | Keyway shaft/Thread shaft/Taper shaft/Spline shaft |
| Speed(rpm) | 3000/3600rpm | Color | Yellow/Black/Red/Green/Others |
| Displacement | 498 | Fuel Oil Tank Volume | 5.5L |
| Starting system | Recoil Start or Electric Start | 20FT QTY | 220 |
| Lubricatiom oil volume(l) | 1.65 | After Warranty Service | No service |
| Local Service Location | None | Showroom Location | None |
| After-sales Service Provided | Overseas third-party support available | Packaging Details | In strong corrugated board carton Length* width* height: 520*490*570 (mm) (With package) |
| Port of dispatch | Shanghai port | Selling Units | Single item |
| Single package size | 51X47X56 cm | ||
| Single gross weight | 60.0 kg | ||
| Supply Ability | 150 sets per Day | ||
192FA 10hp Air-cooled diesel engine specification
| Model | SE192FB(E) |
| Combustion System | Direct Injection |
| Bore*Stroke(mm) | 92*75 |
| Displacement Capacity(cc) | 498 |
| Speed(rpm) | 3000/3600 |
| Max Output | 8.3/9kw |
| Rated Output | 7.8/8.5kw |
| Fuel Oil Tank Volume(L) | 5.5 |
| Lubrication Oil Volume(L) | 1.65 |
| Fuel Oil Consumption Rate(g/kw*h) | 280 |
| Starting System | Recoil or Electric |
| Dimension(mm) | 417*470*494 |
| Net Weight(kg) | 45 |
| 20FT QTY | 240 |
1.Modern workshops have advanced production lines with whole set of inspection, testing equipment. 2.Skilled assemblers is vital to promise high quality production.
3.Flow card to record each details carefully.
4.Test engine at least 45mins to adjust the best state.
Allen Zhou
Wechat&Whatsapp&HP: 0086 151 5042 8925
1. Professional engineer and skilled QC memebers.
2. Advanced production lines and test rooms.
3. Short delivery term.
4. Customized design for customers’ demands.
5. Quality guarantee and professional after-sales service.
6. Professional sales team.
ISO9001-2008, CE
1. We are factory of manufacturing diesel and gasoline engine,diesel generator from 2-1000KW,water
pump,trash pump,construction machinery like vibrator,rammer,compactor,concrete cutter,power
trowel, agriculture machinery and so on.
2. Modern workshop and production line, we warmly welcome your visiting.
3. We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
4. ISO,CE,GS,Rohs certificates.We have been making good progress.
Pack with 7 layer corrugated carton box and wooden pallet to ensure safty during transportation.
