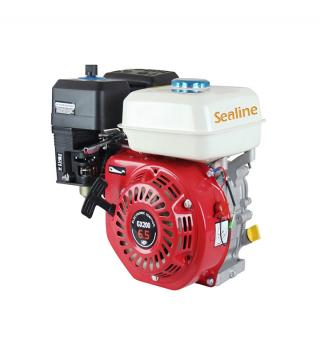

| Gasoline Engine | |||||||
| Engine | Model | SE154F | SE168F | SE170F | SE177F | SE188F | SE190F |
| Bore x Stroke(mm) | 54*38 | 68*45 | 70*52 | 77*58 | 88*64 | 90*64 | |
| Displacement(cc) | 83 | 163 | 210 | 269 | 389 | 420 | |
| Compression ratio | 7.7:1 | 8.5:1 | 8.5:1 | 8.2:1 | 8.0:1 | 8.0:1 | |
| Max out(HP) | 2.6 | 5.5 | 7 | 9 | 13 | 15 | |
| Max out(KW) | 2 | 4.1 | 5.3 | 6.8 | 9.6 | 11.3 | |
| Fuel Type | 90# Gasoline Oil | ||||||
| Fuel Capacity(L) | 1.6 | 3.6 | 3.6 | 6 | 6.5 | 6.5 | |
| Oil Capacity(L) | 0.37 | 0.6 | 0.6 | 1.1 | 1.1 | 1.1 | |
| Min Fuel Consumption(g/hp/h) | 450 | 295 | 280 | 280 | 275 | 275 | |
| Ignition system | non-contact transistorized ignition(TCI) | ||||||
| Starting System | recoil and hand-operated | ||||||
| Air cleaner | semi-dry,oil bath,dual,double silent and cyclone type | ||||||
| Spark plug | F6RTC | F6RTC | F7RTC | F7RTC | F7RTC | F7RTC | |
| Dimension | Dimension(L*W*H) | 300*290*280 | 390*330*350 | 390*330*350 | 510*400*460 | 510*430*475 | 510*430*475 |
| Net weight(KG) | 10.6 | 15 | 17 | 28 | 33 | 34 | |
| Packing | In Strong Corrugated Board Carton | ||||||
| 20FT Loading Quantity | 630 | 630 | 630 | 268 | 268 | 268 | |
| 40HQ Loading Quantity | 1505 | 1505 | 1505 | 652 | 652 | 652 | |
| Payment | Payment Terms | T/T or L/C | |||||
| Minimum Order Quantity | 5 PCS | ||||||
| Delivery Lead Time | Within 15days after received the depsoite | ||||||
| Warranty | One Year or 500 Working Hours | ||||||
